Download the data sheet BIO 3100



BIO 3100 : Asphalt remover




BIO 3100 is a concentrated fluid intended for asphalt removing and anti sticking treatment, for the fabrication, the transport and the implementation of road coatings.
BIO 3100 is a cleaning fluid specifically developed to replace fuel or methyl esters of colza. It is an immediate answer to agency’ managers, safety coordinators, chiefs of exploitation and foremen requirements in terms of safety at work, hygiene, environment and also in terms of performance and compatibility towards the equipment and its environment.

Formulation improving safety

Non flammable, BIO 3100 avoids any need to classify the area of use as ATEX (Regulation of July 8th 2003). On workcamps,
BIO 3100
replaces fuel which can be at the origin of fire starts. Fuel has a flash point of 55°C in a 160 °C environment.

Formulation improving hygiene

BIO 3100, does not contain any solvent and does not emit vapour. Moreover, it is non irritating, has very little dehydrating effect on skin tissue. This preparation does not contain any substance listed as being carcinogenic, mutagenic, toxic, reprotoxic, harmful, irritant, sensitising, corrosive or dangerous for the environment (Regulation of November 9th 2004). BIO 3100 does not cause any occupational disease. There is no need of a special medical supervision. Never use available fuel on workcamp and, classified carcinogenic of class 3.

Formulation improving environment

BIO 3100 immediately satisfies the Regulation of May 29th 2000 related to VOC emissions. It is rapidly and completely biodegradable. It protects the environment in the event of an accidental spill and riverside populations. It requires no authorisation or declaration of use to government authorities (Regulation 2002-680).
BIO 3100
is easily and totally biodegradable according to OECD 302 C test (manometric monitoring during degradation).

Formulation improving waste management

BIO 3100 is classified as N.I.W. (Normal industrial waste). After use, it can be collected free of charge as part of an added-value programme.

BIO 3100 is formulated from 100% plant origin and renewable constituents, having been the object of an analysis of their life cycle (ISO 14040).



Bilan Carbone Bio 3100 : Cleaning and anti-sticking

* Assessment calculated for a ton of product made, packaged in a plastic container
and delivered to 1000 kilometers of its place of manufacturing



Typical physical and chemical properties

 PROPERTIES
STANDARDS
VALUES
UNITS
 Aspect
Visual
Fluid
-
 Color *
Visual
-
-
 Odor
Olfactive
Weak
-
 Density at 25°C
NF-EN ISO 12185
895
Kg/m³
 Freezing point
ASTM D 97
-2
°C

*This product is made and based on natural plant oil esters whose origins do not make it possible to specify a constant color. This one can vary according to the places of production and the climatic conditions before harvesting. A difference in color even extremely important does not influence at all product performance.





Performance properties



 PROPERTIES
STANDARDS
VALUES
UNITS
 Asphalt removing time for BIO 3100
Internal method
6’ 30’’
mn/sec
 Asphalt removing time for Fioul
Internal method
5’45’’
mn/sec

Safety - fire properties

 PROPERTIES
STANDARDS
VALUES
UNITS
 Flash point closed cup
NF EN 22719
185
° C
 Auto-ignition point
ASTM E 659
>300
° C
 Lower explosibility limit
-
Non explosive
% (v/v)
 Upper explosibility limit
-
Non explosive
% (v/v)
 Vapour pressure
NF M 07 007
<0,01
kPa à 20°C
 Content of explosive, oxidizing, flammable,
 easily flammable, extremely flammable substances
CEE Regulation
1272/2008 CLP
Total absence
-

Toxicological properties

 PROPERTIES
STANDARDS
VALUES
UNITS
 Iodine index
-
111,3
gl2/100g
 Totox (Anisidine index + 2x Peroxyde index)
-
48,56
-
 Accelerated test of oxydability (Rancimat Test)
 - Debit
 - Temperature
 - Time

-
-
-

10
100
2,6

l/h
°C
H
 Content of toxic, very toxic, carcinogenic, mutagenic,
 reprotoxic, harmful, irritant, or corrosive substances
CEE Regulation
1272/2008 CLP
Total absence
-

Environment properties

 PROPERTIES
STANDARDS
VALUES
UNITS
 Biodegradability
Test OCDE 302 C
Totally biodegradable
-
 VOC content
-
0
%
 Solvent content
-
0
%
 Content of substances dangerous for the environment
CEE Regulation
1272/2008 CLP
Total absence
-

Precautions of use

• Store in temperate places before use.
• Do not split the product in big quantity, with a jerrycan, use preferably a manual spray.
• In case of accidental split on just-made coatings, rinse immediately and profusely with water the surfaces.
  The first function of this product being the elimination of asphalt
• Use pure. Do not mix with fuel, classified carcinogenic.
• Spray only when the finisher is empty.
• Use on rollers only before starting.



Applications


FUNCTIONS
Supports involded (equipment or materials)
Workcamps
Cleaning agent
  - Spreader ramps and emulsion circuits for finishers with integrated ramps
  - Edges
  - Dirty tools (handles and teeth of rakes, shovels, etc.)
  - Dirty clothing
  - Dirty gloves
  - Dirty shoes
Non-stick
  - Finisher table
  - Profiler conveyor flanges
  - Finisher or profiler hopper
  - Finisher supply and supply screw
  - Finisher track
  - Sump of loader carrying the asphalt
  - ECF machine sledge
  - Tools (scrapers, shovels, rakes, etc.)
  - Manhole covers
  - Shoes
  - Vibratory plates
  - Chaussures
  - Plaques vibrantes
Workshop
Cleaning agent
  - Metal parts with asphalt
  - Metal parts with grease
  - Dirty clothing
  - Dirty gloves
  - Dirty shoes
Factory
Non-stick
  - Skip, shuttle or scraper conveyor for asphalt
  - Truck body
Cleaning agent
  - Metal parts with asphalt
  - Metal parts with grease
  - Laboratory glassware with emulsion or asphalt
  - Dirty clothing
  - Dirty gloves
  - Dirty shoes
  - Asphalt filter
  - Glassware and other laboratory equipment

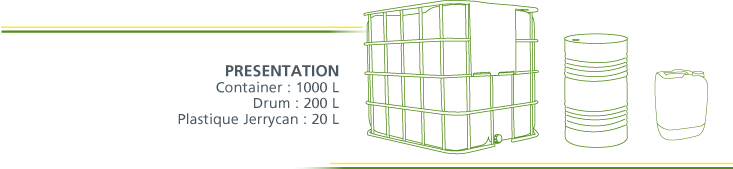

Presentation : Container, drum and plastic jerrycan
